Food Production Line for Food,high-speed and High-sensitivity Metal Detector Plastic,paper Packaging PG-G3012 30m/min 5KG
Power:800WModel Number:PG-G3012 PG-G4015
| Lead Time | Quantity(Sets) | 1 - 1 | 2 - 50 | >50 |
| EstTime(days) | 35 | 50 | To be negotiated |
Shipping:Support Sea freight · Land freight · Air freight
Service:2 years for machinery warranty | 2 years for Core Components
Quick Details
Type:Multi-Function Packaging Machine
Applicable Industries:Food & Beverage Factory, Farms
Showroom Location:None
Function:FILLING, Wrapping, Labeling
Application:Food, Commodity, Medical, Machinery & Hardware
Packaging Type:Stand-up Pouch, Bags, Film, Foil, Pouch
Packaging Material:Plastic, Paper
Automatic Grade:Automatic
Driven Type:Electric
Voltage:220V
Place of Origin:Guangdong, China
Brand Name:PACCURA
Dimension(L*W*H):actual
Warranty:2 years
Key Selling Points:High-accuracy
Marketing Type:Ordinary Product
Machinery Test Report:Not Available
Video outgoing-inspection:Provided
Warranty of core components:2 years
Core Components:Motor, PLC
Name:Food Metal Detector
Identify Code:PG-G3012
Max Package Size:Width300mm x Height 120mm
Sensitivity:Fe:0.8mm;SUS1.5mm
Max Weight:5KG
Speed:30m/min
After Warranty Service:Video technical support, Online support
Local Service Location:None
After-sales Service Provided:Video technical support, Online support
Certification:CE
Features
1.32 kinds of languages to choose, 7"standard industrial touch screen, new industry standard.
2.Adopts balance coil theory, signals full cover all the detecting zone, no blind zone.
3.Adopts many digital processing technologies and intelligent algorithm, over all functions, increases detecting sensitivity and
stablity.
4.Adopts phase regulation technology to restrain signal interference from products.
5.Digital control mainboard, stable performance, automatical product setup function, visual detecting wave shape, easy to adjust.
6.Large storage space, can save product program and record of produce and alarm etc;
7.Multi-level user administration to avoid unprofessional changes parameters.
8.Stainless steel waterproof design, detachable design for belt, easy to maintain.
Mechanical Character
It adopts advanced digital processing technology, can detect both magnetic and nonmagnetic metals in the product. Colorful touch screen is convenient for communication between man and computer.High detecting sensitivity and stablity. Multiple rejecting devices to choose, avoiding situations that metal leaving in the product when producing.

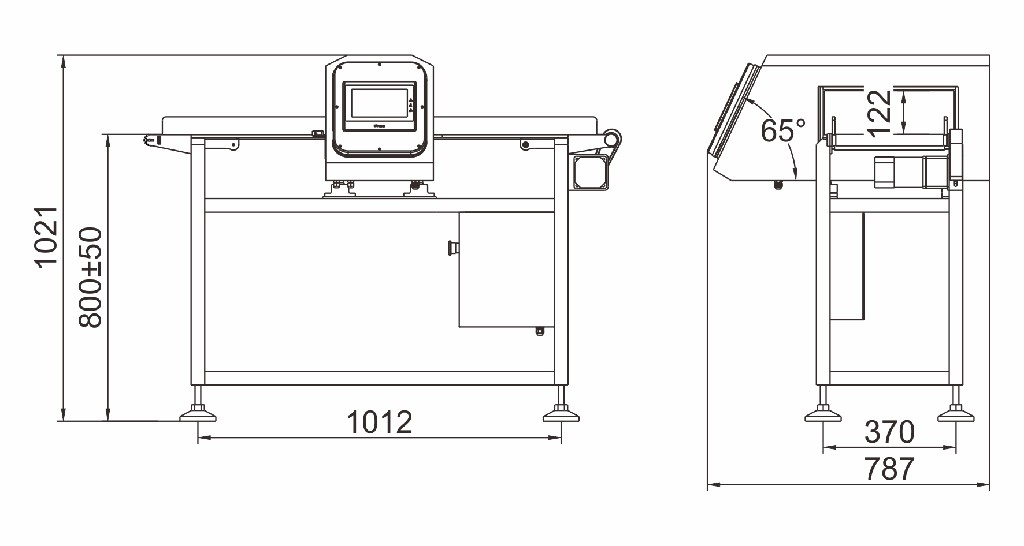

| Model | PG-G3012 | PG-G4015 | PG-G4025 | PG-G5020 |
| Identify Code | G3012-1-1 | G4015-1-1 | G4025-1-1 | G5020-1-1 |
| Protection Class | IP54/IP66 | |||
| Speed | 30m/min | |||
| Max Package Size(mm) | 300(W)x120(H) | 400(W)x150(H) | 400(W)x250(H) | 500(W)x200(H) |
| Sensitivity(mm) | Fe: φ0.8 Sus:φ1.5 | Fe: φ1.0 Sus:φ2.0 | Fe: φ1.5 Sus:φ3.0 | Fe: φ1.2 Sus:φ2.5 |
| Power Requirement | 220V/180W/50/60HZ/0.8A | 220V/180W/50/60HZ/0.8A | 220V/180W/50/60HZ/0.8A | 220V/220W/50/60HZ/1A |
| Packing Dimension(mm) | 1450(L)x890(W)x1080(H) | 1450(L)x1010(W)x1110(H) | 1450(L)x1010(W)x1210(H) | 1450(L)x1110(W)x1160(H) |
| Gross Weight | 200kg | 230kg | 240kg | 260kg |
