Industrial belt conveyor aluminum foil metal detector for aluminum foil packaging productsMeasurement Range:240mm(W)*150mm(H)
Accuracy:Fe 2.0Sus 2.0
|Lead Time||Quantity(Sets)||1 - 10||11 - 50||>50|
|EstTime(days)||25||35||To be negotiated|
Shipping:Support Sea freight · Land freight · Air freight
Place of Origin:China
Max package size width:240mm
Max package size Height:Adjustable:50-150mm
Opening size:240 x 150 mm
Power Requirement:220V/180W/ 50/60Hz /0.8A
Machine net weight:160Kg
1.Equipped with 7-inch color screen,pre-installed operation helo menu,convenient for human-machine exchange coordination and learning,intelligent sampling learning function according to material characteristics.
2.High-sensitivity sensor application and integrated control method can effectively solve the detection ability of magnetic metal foreign objects in aluminum film and aluminum foil packaging products.
microprocessor,superior digital signal analysis and processing,improve system sensitivity,anti-interference and long-term stability.
4.Data can be baked up via USB.
5.Support software upgrades to facilitate system maintenance.
1.Customized plastic chain plate,reduce the interference source,make machine running smoothly and ensure the detection sensitivity,make it easier to disassemble and maintain.
2.Stainless steel integrated frame,simple and beautiful,easy to clean and maintain.
3.Positive and negative transport design,flexible mating packaging production line matching requirements.
4.The built-in high-sensitivity sensor of the detector can effectively shield the signal of the aluminum film packaging product and accurately determine the magnetic metal foreign matter in the package.
5.A variety of rejection are available.
|Detection accuracy||Fe 2.0 Sus 2.0|
|Conveyor belt speed||15-35m/in|

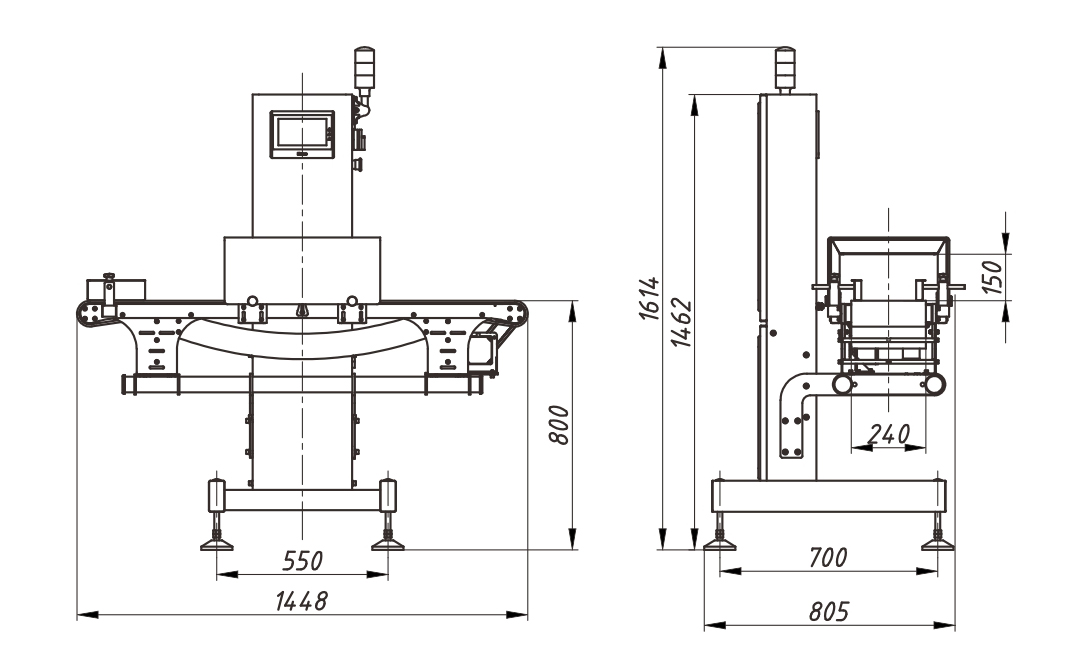

|Max package size width||240mm|
|Max package size Height||Adjustable:50-150mm|
|Opening size||240 x 150 mm|
|Power Requirement||220V/180W/ 50/60Hz /0.8A|
|Machine net weight||160Kg|
